  • YG-1 SI162 No.4-40.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

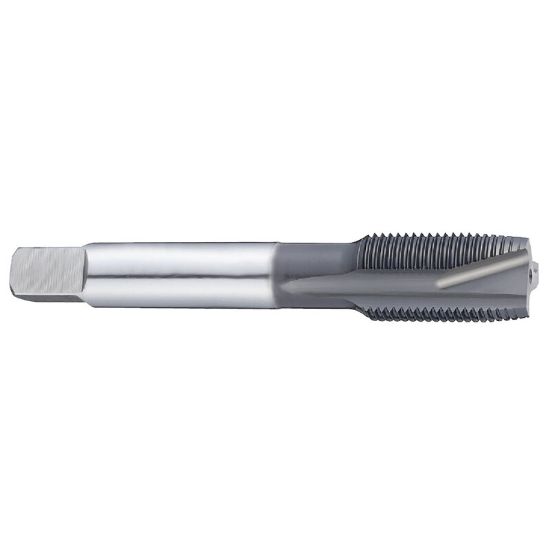

Picture of YG-1 SI162 No.4-40.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 SI162 No.4-40.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI162
Delivery date: 3-5 days
$11.24

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping, Tapping
Shipping State Illinois
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Flutes/Inserts 3
Tap Chamfer 4.5P-5.0P
Thread Pitch 40.00TPI
Thread Limit 2B
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Plug
Length Type Standard
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1181 3.00MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Tap Style STI
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
