  • YG-1 SF05118 1-9/32 Super HSS (T15) Flat Bottom Spade Drill Insert TIN Coated

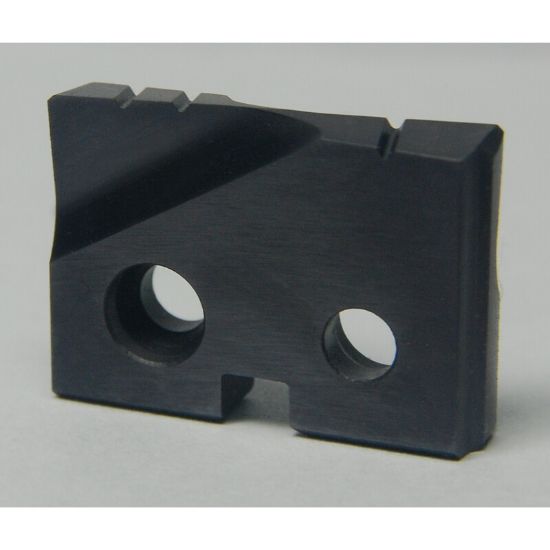

Picture of YG-1 SF05118 1-9/32 Super HSS (T15) Flat Bottom Spade Drill Insert TIN Coated

YG-1 SF05118 1-9/32 Super HSS (T15) Flat Bottom Spade Drill Insert TIN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SF05118
Delivery date: 3-5 days
$50.41

Cutting Edge Definition

T15 is used for cutting tools that are exposed to extremely rigorous heat or abrasion in service. The M tool steels generally are considered to have molybdenum as the principal alloying element, although several contain an equal or a slightly greater amount of such elements as tungsten or cobalt.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Spade Drilling, Drilling, Single Insert Drilling, Flat Bottom Drilling
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Cut Dia Min 1.2810 32.54MM - 1-9/32
Flutes/Inserts 2
Tool Material Super HSS T15
Included Angle 180° , Flat Bot
Cutter Dia 1.2813 32.54MM - 1-9/32
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Super HSS T15
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
