  • YG-1 S1780 1-11.50TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

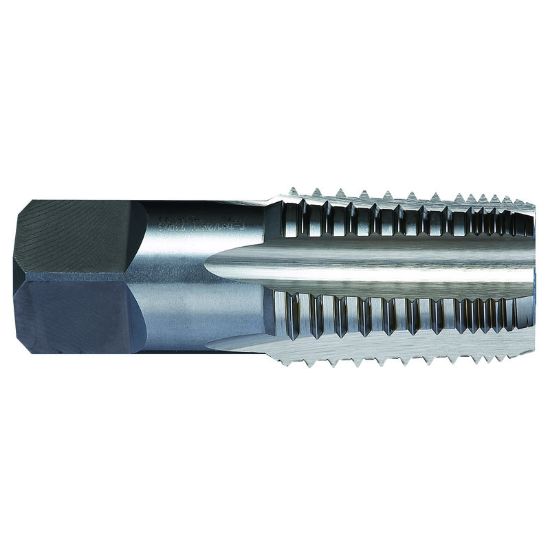

Picture of YG-1 S1780 1-11.50TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

YG-1 S1780 1-11.50TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-S1780
Delivery date: 3-5 days
$119.83

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Skip Tooth Pipe
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Tap Type Pipe
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Tap Square 0.8430
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Thread Size 1"
Thread Pitch 11.50TPI
Length Type Standard
Flutes/Inserts 5
Tap Style Pipe Skip Tooth
Drill Range 1.1406 28.97MM
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 3.7500 95.25MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
