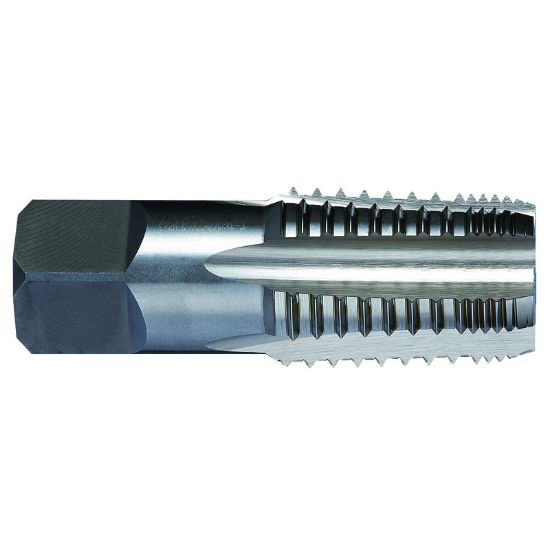

Picture of YG-1 S1700 3/4-14.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

YG-1 S1700 3/4-14.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-S1700
Delivery date: 3-5 days
$78.81

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Skip Tooth Pipe
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Chamfer 2.0P-3.0P
Thread Size 3/4"
Thread Type NPT/NPTF/ANPT
Length Type Standard
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Overall Len 3.2500 82.55MM
Drill Range 0.9059 23.01MM
Tap Square 0.6790
Tool Material Steel
Flutes/Inserts 5
Tap Style Pipe Skip Tooth
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
