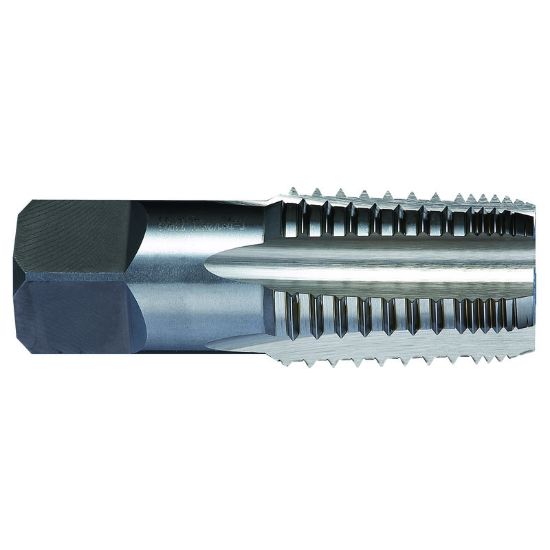

Picture of YG-1 S1400 1/4-18.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

YG-1 S1400 1/4-18.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-S1400
Delivery date: 3-5 days
$26.87

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Skip Tooth Pipe, Pipe Tapping, Tapping
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Size 1/4"
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.5620 14.27MM
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Overall Len 2.4370 61.90MM
Flutes/Inserts 5
Tap Style Pipe Skip Tooth
Thread Pitch 18.00TPI
Tap Chamfer 2.0P-3.0P
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Dimension Standard ANSI/ANSI
Length Type Standard
Tap Type Pipe
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
