  • YG-1 S1210 1/8-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

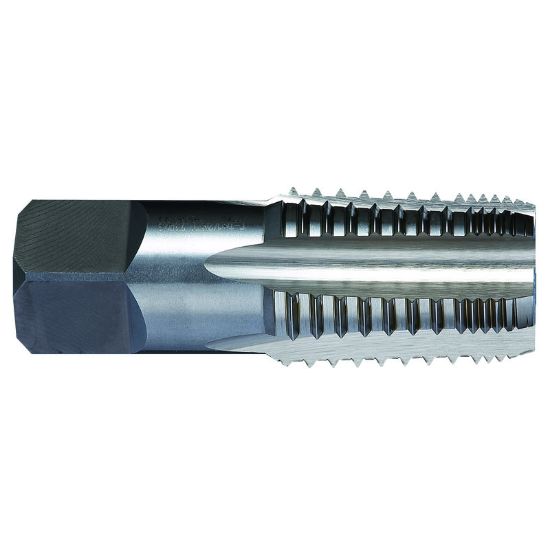

Picture of YG-1 S1210 1/8-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

YG-1 S1210 1/8-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-S1210
Delivery date: 3-5 days
$24.40

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Skip Tooth Pipe, Tapping, Pipe Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Thread Type NPT/NPTF/ANPT
Shank/Pilot Dia 0.3120 7.92MM
Length Type Standard
Dimension Standard ANSI/ANSI
Tool Material Steel
Flutes/Inserts 5
Drill Range 0.3319 8.43MM
Tap Square 0.2340
Tap Style Pipe Skip Tooth
Tap Chamfer 2.0P-3.0P
Overall Len 2.1250 53.98MM
Thread Size 1/8"
Thread Pitch 27.00TPI
Tap Type Pipe
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
