  • YG-1 S1200 1/8-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

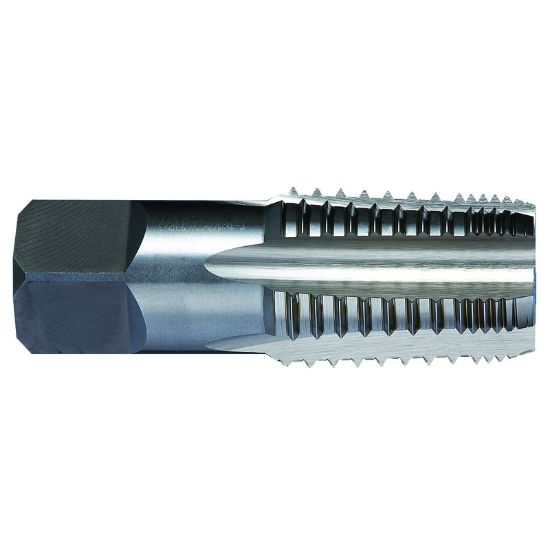

Picture of YG-1 S1200 1/8-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

YG-1 S1200 1/8-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-S1200
Delivery date: 3-5 days
$24.40

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Pipe Tapping, Tapping, Skip Tooth Pipe
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Length Type Standard
Thread Limit PIPE
Overall Len 2.1250 53.98MM
Shank/Pilot Dia 0.3120 7.92MM
Tap Chamfer 2.0P-3.0P
Thread Size 1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Dimension Standard ANSI/ANSI
Thread Pitch 27.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Tool Material Steel
Flutes/Inserts 5
Drill Range 0.3319 8.43MM
Tap Square 0.2340
Tap Style Pipe Skip Tooth
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
