  • YG-1 S1020 1/16-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

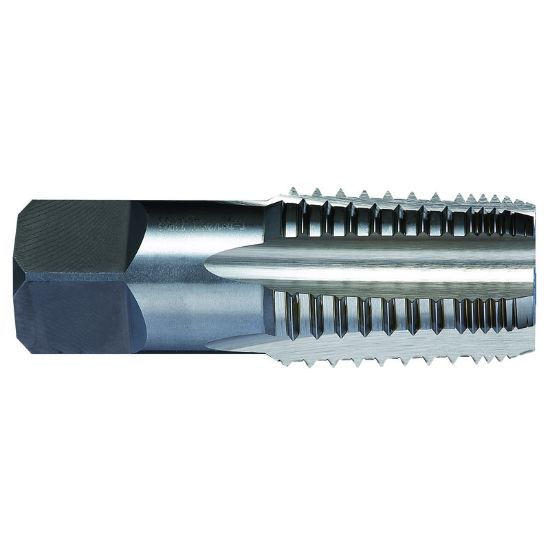

Picture of YG-1 S1020 1/16-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

YG-1 S1020 1/16-27.00TPI Pipe Skip Tooth Pipe 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-S1020
Delivery date: 3-5 days
$24.40

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Skip Tooth Pipe, Pipe Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Overall Len 2.1250 53.98MM
Thread Pitch 27.00TPI
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Machine Side Connection Type Tap Collet
Tap Type Pipe
Shank/Pilot Dia 0.3120 7.92MM
Length Type Standard
Thread Limit PIPE
Drill Range 0.2417 6.14MM
Tap Chamfer 2.0P-3.0P
Flutes/Inserts 5
Tap Square 0.2340
Tap Style Pipe Skip Tooth
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
