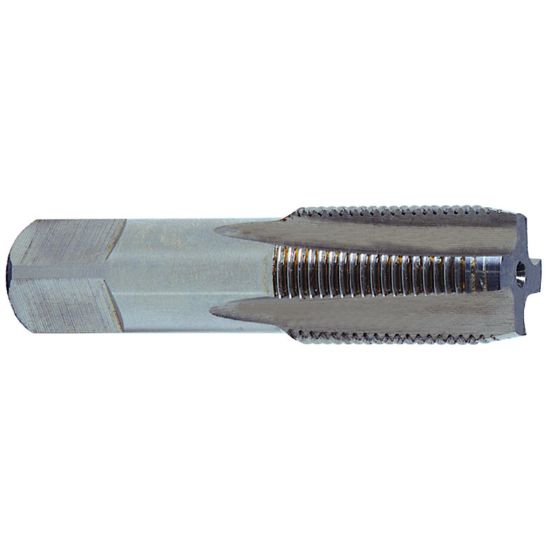

YG-1 S0700 3/4-14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-S0700
Delivery date: 3-5 days
$80.89

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Straight Flute Pipe, Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Coating Nitride + Steam Oxide
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Overall Len 3.2500 82.55MM
Drill Range 0.9059 23.01MM
Tap Square 0.6790
Length Type Standard
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Flute Direction STRAIGHT
Tap Type Pipe
Flutes/Inserts 5
Tap Style Pipe Straight Flute
Thread Limit PIPE
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
