  • YG-1 S04427 2-11/32 HSS(M4) Throw Away Spade Drill Insert HARDSLICK Coated

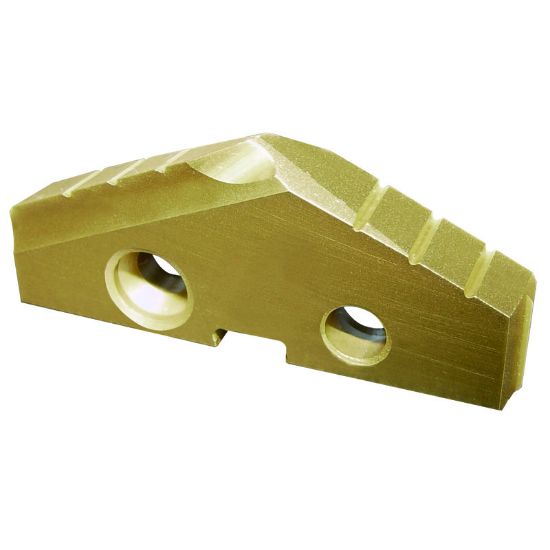

Picture of YG-1 S04427 2-11/32 HSS(M4) Throw Away Spade Drill Insert HARDSLICK Coated

YG-1 S04427 2-11/32 HSS(M4) Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1S04427
Delivery date: 3-5 days
$45.47

Cutting Edge Definition

HSS PM M4 HC is a high vanadium, powder metallurgy steel, with higher wear resistant and pressure resistance but more difficult to grind than M2 high speed steel.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating Hardslick
Made In USA No
Application Single Insert Drilling, Drilling, Spade Drilling
Shipping State Illinois
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Stainless Steel
Cut Dia Min 2.3438 59.53MM - 2-11/32
Flutes/Inserts 2
Included Angle 132°
Tool Material HSS M4
Cutter Dia 2.3438 59.53MM - 2-11/32
Cutting & Machining Properties
Cutting Edge Mat HSS M4
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Multi Spindle Yes
Mold Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
