  • YG-1 S01703 3-9/16 HSS(M4) Throw Away Spade Drill Insert TIN-Coated

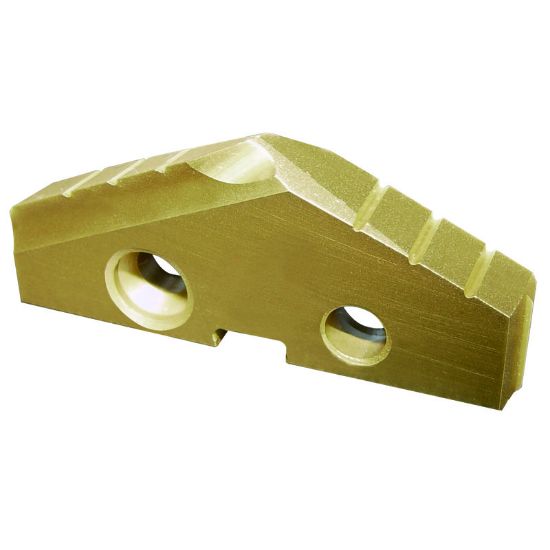

Picture of YG-1 S01703 3-9/16 HSS(M4) Throw Away Spade Drill Insert TIN-Coated

YG-1 S01703 3-9/16 HSS(M4) Throw Away Spade Drill Insert TIN-Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1S01703
Delivery date: 3-5 days
$76.15

Cutting Edge Definition

HSS PM M4 HC is a high vanadium, powder metallurgy steel, with higher wear resistant and pressure resistance but more difficult to grind than M2 high speed steel.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling, Spade Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Coating TiN
Dimensional Specifications
Tool Material HSS M4
Cut Rating <30HRC Steel, Ductile Iron, Stainless Steel
Flutes/Inserts 2
Cut Dia Min 3.5625 90.49MM - 3-9/16
Included Angle 144°
Cutter Dia 3.5625 90.49MM - 3-9/16
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSS M4
Industry-Specific Applications
Aerospace Yes
Mold Yes
Multi Spindle Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
