  • YG-1 R9780 1-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

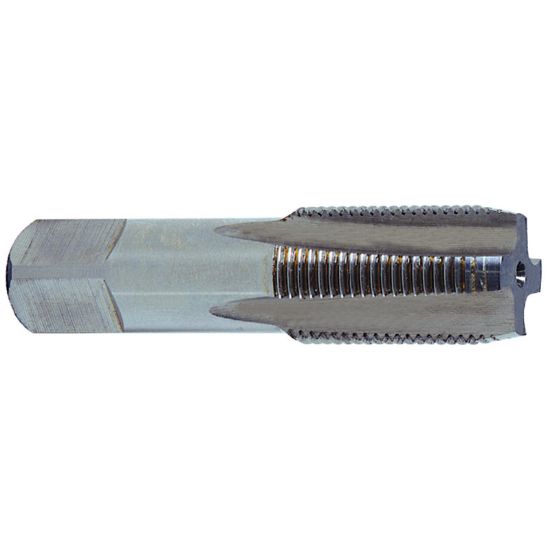

Picture of YG-1 R9780 1-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

YG-1 R9780 1-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-R9780
Delivery date: 3-5 days
$135.09

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Straight Flute Pipe
Coating Hardslick
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 3.7500 95.25MM
Tap Style Pipe Straight Flute
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Drill Range 1.1406 28.97MM
Dimension Standard ANSI/ANSI
Tool Material Steel
Flutes/Inserts 5
Tap Chamfer 2.0P-3.0P
Thread Size 1"
Thread Pitch 11.50TPI
Thread Type NPT/NPTF/ANPT
Tap Square 0.8430
Length Type Standard
Flute Direction STRAIGHT
Tap Type Pipe
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
