  • YG-1 R9480 3/8-18.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

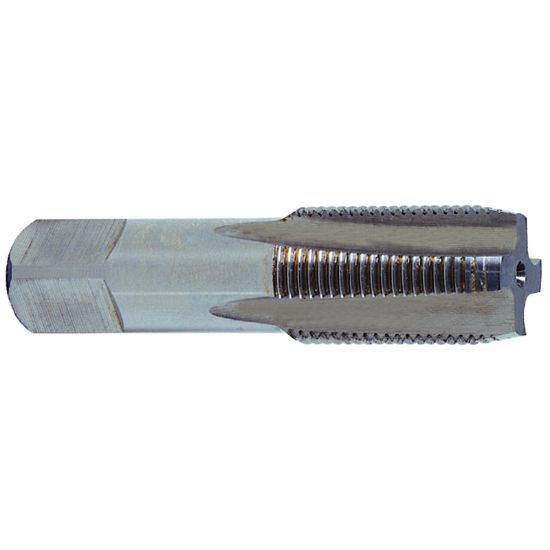

Picture of YG-1 R9480 3/8-18.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

YG-1 R9480 3/8-18.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-R9480
Delivery date: 3-5 days
$44.08

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Straight Flute Pipe, Pipe Tapping
Coating Hardslick
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Flute Direction STRAIGHT
Shank/Pilot Dia 0.7000 17.78MM
Overall Len 2.5620 65.07MM
Tap Type Pipe
Flutes/Inserts 4
Length Type Standard
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 0.5622 14.28MM
Tap Square 0.5310
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Thread Size 3/8"
Thread Pitch 18.00TPI
Tap Chamfer 2.0P-3.0P
Tap Style Pipe Straight Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
