  • YG-1 R9020 1/16-27.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

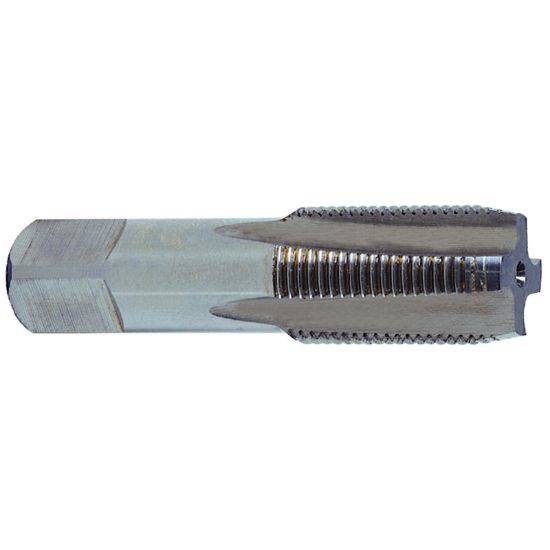

Picture of YG-1 R9020 1/16-27.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

YG-1 R9020 1/16-27.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-R9020
Delivery date: 3-5 days
$31.51

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Straight Flute Pipe, Pipe Tapping, Tapping
Shipping State Illinois
Package Size 1
Made In USA No
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 2.1250 53.98MM
Tap Square 0.2340
Tap Style Pipe Straight Flute
Machine Side Connection Type Tap Collet
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Limit PIPE
Drill Range 0.2417 6.14MM
Tap Chamfer 2.0P-3.0P
Thread Pitch 27.00TPI
Flute Direction STRAIGHT
Tap Type Pipe
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 4
Length Type Standard
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
