  • YG-1 R8860 1-1/4-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 TiN

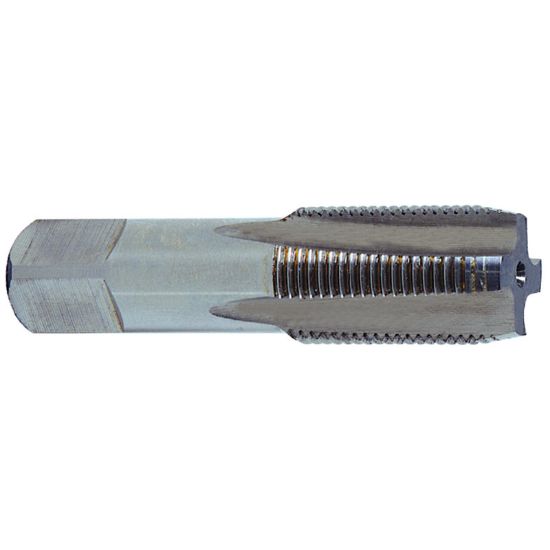

Picture of YG-1 R8860 1-1/4-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 TiN

YG-1 R8860 1-1/4-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-R8860
Delivery date: 3-5 days
$174.49

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Straight Flute Pipe, Pipe Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Coating TiN
Package Size 1
Dimensional Specifications
Tap Style Pipe Straight Flute
Thread Size 1-1/4"
Flute Direction STRAIGHT
Overall Len 4.0000 101.60MM
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Square 0.9840
Tap Type Pipe
Thread Pitch 11.50TPI
Length Type Standard
Flutes/Inserts 5
Thread Limit PIPE
Drill Range 1.4839 37.69MM
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 1.3120 33.32MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
