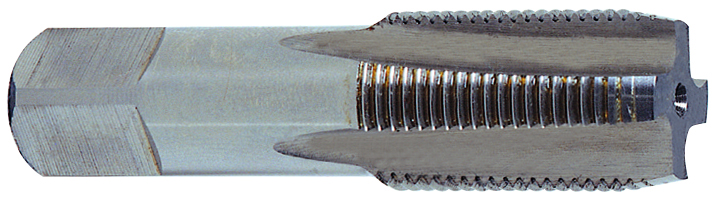

Picture of YG-1 R8560 1/2-14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 TiN

YG-1 R8560 1/2-14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 TiN

Part Number: YG-R8560
Looking for alternatives…
Find a drill for this tap 1/2" × 14.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1164257
Vendor: Sussex Tool and Supply
$89.77

Description

YG-1 R8560 1/2"x14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 TiN PIPE NPT/NPTF/ANPT Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction STRAIGHT
Tap Style Pipe Straight Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.1250 79.38MM
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Flutes/Inserts 4
Thread Pitch 14.00TPI
Thread Size 1/2"
Tap Drill Range 17.8500 453.39MM
Tap Square 0.5150
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
