  • YG-1 R7960 1-1/2-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

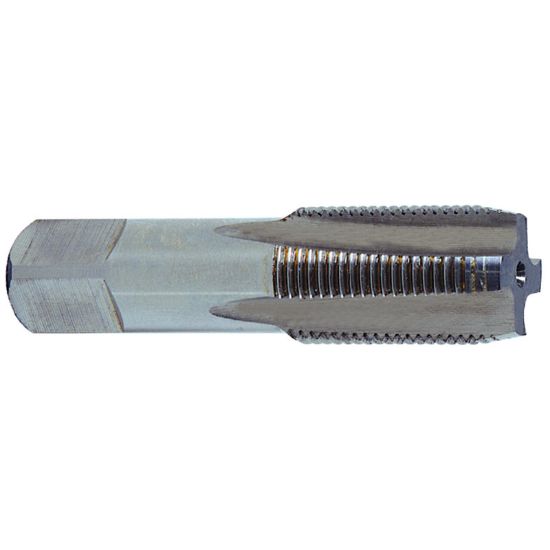

Picture of YG-1 R7960 1-1/2-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

YG-1 R7960 1-1/2-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-R7960
Delivery date: 3-5 days
$174.64

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Pipe Tapping, Tapping, Straight Flute Pipe
Package Size 1
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 4.2500 107.95MM
Flutes/Inserts 7
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Tap Square 1.1250
Thread Pitch 11.50TPI
Thread Type NPT/NPTF/ANPT
Drill Range 1.7177 43.63MM
Length Type Standard
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Thread Size 1-1/2"
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Flute Direction STRAIGHT
Tap Type Pipe
Tap Style Pipe Straight Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
