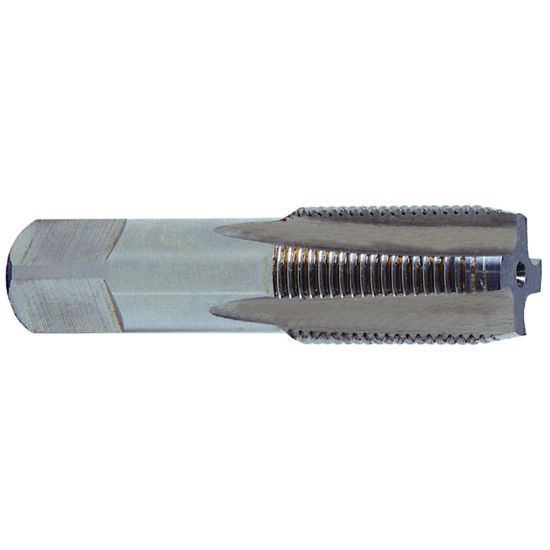

Picture of YG-1 R7860 1-1/4-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

YG-1 R7860 1-1/4-11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-R7860
Delivery date: 3-5 days
$124.39

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Straight Flute Pipe, Pipe Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 1.3120 33.32MM
Flute Direction STRAIGHT
Tap Type Pipe
Tool Material Steel
Flutes/Inserts 5
Thread Size 1-1/4"
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 4.0000 101.60MM
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Tap Square 0.9840
Thread Pitch 11.50TPI
Thread Type NPT/NPTF/ANPT
Length Type Standard
Drill Range 1.4839 37.69MM
Tap Chamfer 2.0P-3.0P
Tap Style Pipe Straight Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
