  • YG-1 R7560 1/2-14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

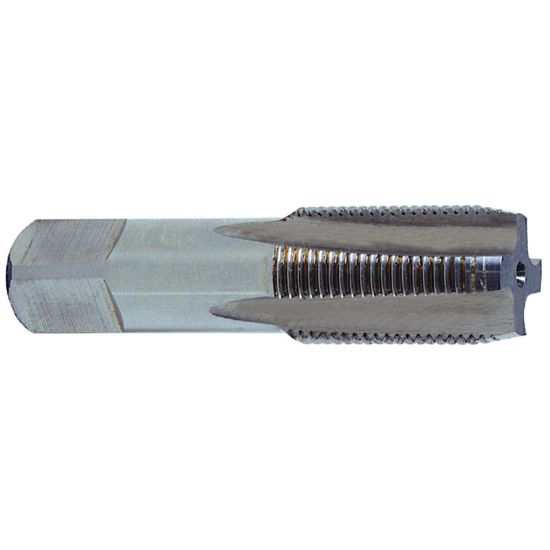

Picture of YG-1 R7560 1/2-14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

YG-1 R7560 1/2-14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-R7560
Delivery date: 3-5 days
$50.37

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Straight Flute Pipe, Pipe Tapping, Tapping
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Tap Style Pipe Straight Flute
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Flutes/Inserts 4
Length Type Standard
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Thread Size 1/2"
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Tap Square 0.5150
Tap Chamfer 2.0P-3.0P
Flute Direction STRAIGHT
Overall Len 3.1250 79.38MM
Tap Type Pipe
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
