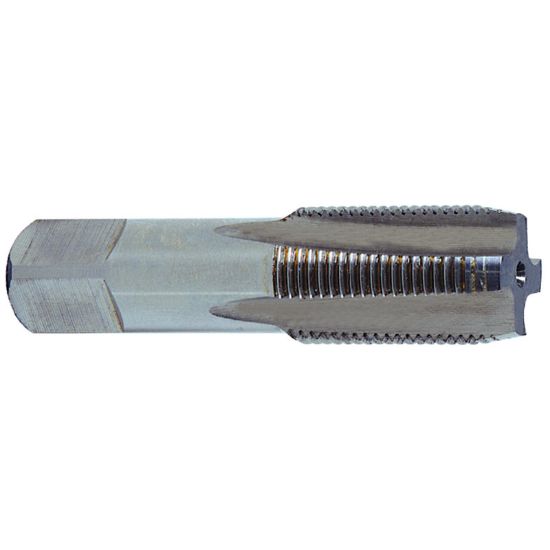

YG-1 R7210 1/8-27.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-R7210
Delivery date: 3-5 days
$21.81

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Straight Flute Pipe, Tapping, Pipe Tapping
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Drill Range 0.3319 8.43MM
Thread Limit PIPE
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Overall Len 2.1250 53.98MM
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Tap Square 0.2340
Tap Style Pipe Straight Flute
Thread Size 1/8"
Thread Pitch 27.00TPI
Flute Direction STRAIGHT
Tap Type Pipe
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
