  • YG-1 Q9860 1-1/4-11.50TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

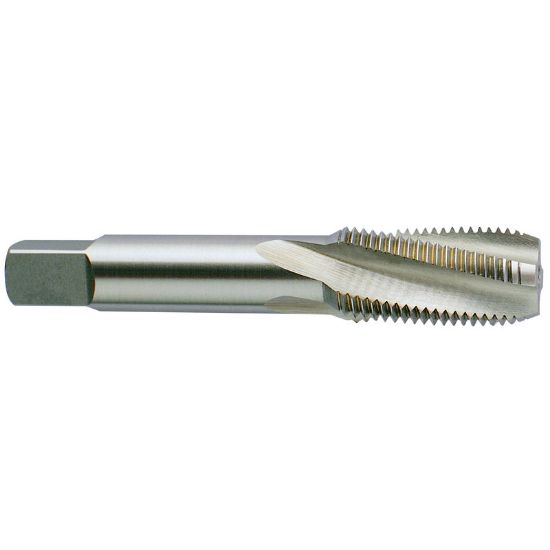

Picture of YG-1 Q9860 1-1/4-11.50TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

YG-1 Q9860 1-1/4-11.50TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Q9860
Delivery date: 3-5 days
$124.39

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Spiral Flute Pipe, Tapping
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Drill Range 1.4839 37.69MM
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Thread Size 1-1/4"
Overall Len 4.0000 101.60MM
Tap Type Pipe
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Tap Square 0.9840
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 1.3120 33.32MM
Thread Pitch 11.50TPI
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
