  • YG-1 Q6200 1/8-27.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

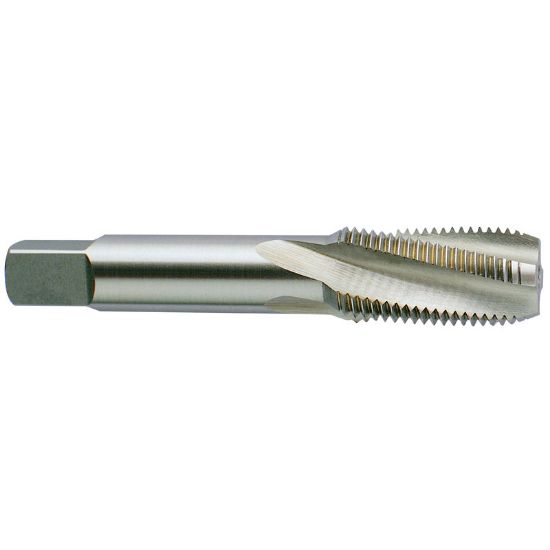

Picture of YG-1 Q6200 1/8-27.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

YG-1 Q6200 1/8-27.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Q6200
Delivery date: 3-5 days
$32.05

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Spiral Flute Pipe, Tapping
Package Size 1
Coating Hardslick
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Thread Size 1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Tool Material Steel
Drill Range 0.3319 8.43MM
Tap Square 0.2340
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Thread Pitch 27.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 2.1250 53.98MM
Dimension Standard ANSI/ANSI
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
