  • YG-1 P28Z01 SERIES Z FLANGED Straight Shank / Flute Extended Spade Drill Holder

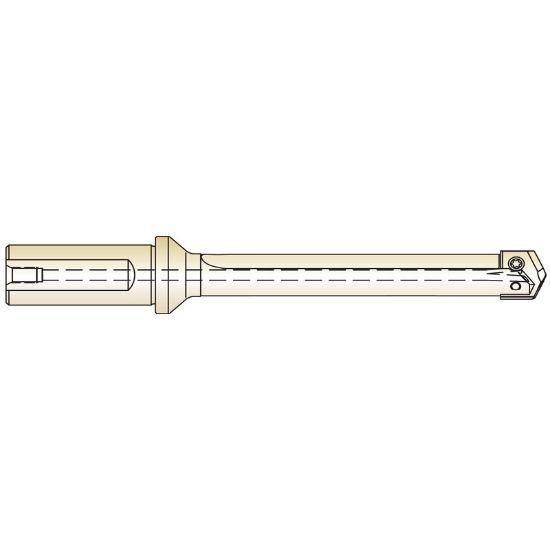

Picture of YG-1 P28Z01 SERIES Z FLANGED Straight Shank / Flute Extended Spade Drill Holder

YG-1 P28Z01 SERIES Z FLANGED Straight Shank / Flute Extended Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P28Z01
Delivery date: 3-5 days
$286.21

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Spade Drilling, Single Insert Drilling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Max 0.5000 12.70MM - 1/2
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Cutter Dia 0.4375 11.11MM - 7/16
Cut Dia Min 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 7.5625 192.09MM
Flute Length 4.3750 111.13MM
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
