  • YG-1 P28203 SERIES 2 FLANGED Straight Shank / Flute Extended Spade Drill Holder

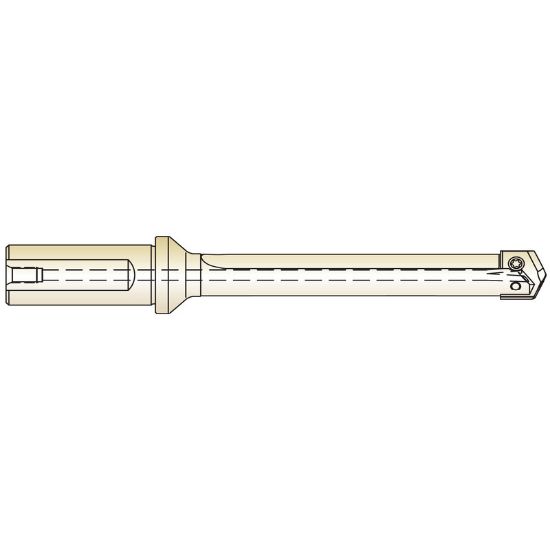

Picture of YG-1 P28203 SERIES 2 FLANGED Straight Shank / Flute Extended Spade Drill Holder

YG-1 P28203 SERIES 2 FLANGED Straight Shank / Flute Extended Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P28203
Delivery date: 3-5 days
$396.79

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling, Spade Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Cutter Dia 0.9688 24.61MM - 31/32
Flutes/Inserts 2
Flute Length 11.3750 288.93MM
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Max 1.3750 34.93MM
Cut Dia Min 0.9688 24.61MM - 31/32
Overall Len 15.3438 389.73MM
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
