  • YG-1 P27Z01 SERIES Z FLANGED Straight Shank / Flute Standard Spade Drill Holder

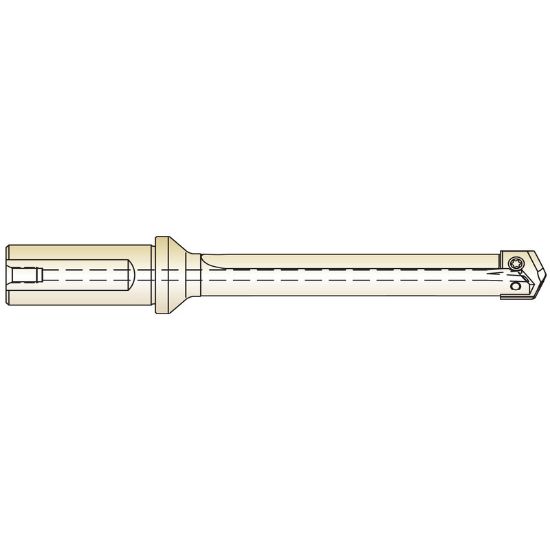

Picture of YG-1 P27Z01 SERIES Z FLANGED Straight Shank / Flute Standard Spade Drill Holder

YG-1 P27Z01 SERIES Z FLANGED Straight Shank / Flute Standard Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P27Z01
Delivery date: 3-5 days
$224.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Spade Drilling, Single Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.5000 12.70MM - 1/2
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 5.5625 141.29MM
Flute Length 2.3750 60.33MM
Cutter Dia 0.4375 11.11MM - 7/16
Cut Dia Min 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
