  • YG-1 P27Y01 SERIES Y FLANGED Straight Shank / Flute Standard Spade Drill Holder

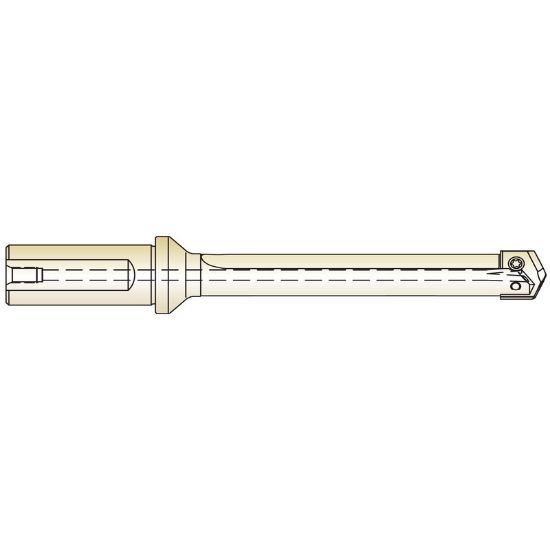

Picture of YG-1 P27Y01 SERIES Y FLANGED Straight Shank / Flute Standard Spade Drill Holder

YG-1 P27Y01 SERIES Y FLANGED Straight Shank / Flute Standard Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P27Y01
Delivery date: 3-5 days
$224.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling, Spade Drilling
Shipping State Illinois
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flute Length 2.3750 60.33MM
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 0.3750 9.53MM - 3/8
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 0.4219 10.72MM - 27/64
Overall Len 5.5625 141.29MM
Cut Dia Min 0.3750 9.53MM - 3/8
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Multi Spindle Yes
