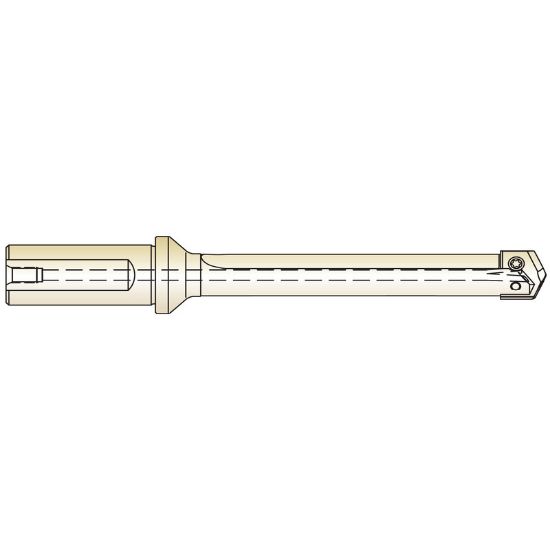

Picture of YG-1 P26304 SERIES 3 FLANGED Straight Shank / Flute INTERMEDIATED Spade Drill Holder

YG-1 P26304 SERIES 3 FLANGED Straight Shank / Flute INTERMEDIATED Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P26304
Delivery date: 3-5 days
$342.20

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Spade Drilling, Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 1.4062 35.72MM - 1-13/32
Tool Material Steel
Overall Len 11.2500 285.75MM
Flute Length 6.5000 165.10MM
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Cut Dia Max 1.8750 47.63MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutter Dia 1.4062 35.72MM - 1-13/32
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Energy Yes
Agricultural YES
