  • YG-1 P26253 SERIES 2.5 FLANGED Straight Shank / Flute INTERMEDIATED Spade Drill Holder

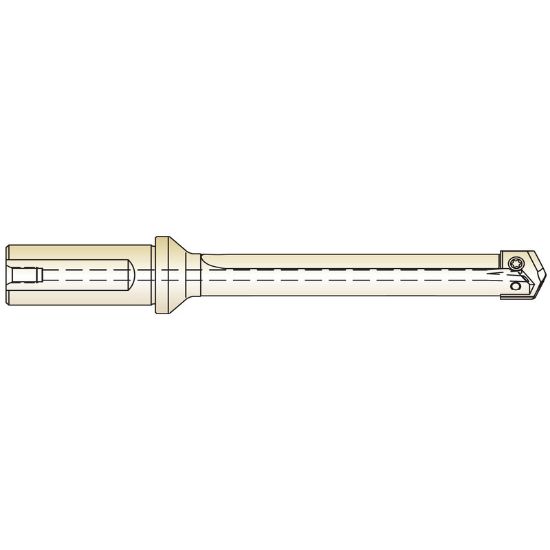

Picture of YG-1 P26253 SERIES 2.5 FLANGED Straight Shank / Flute INTERMEDIATED Spade Drill Holder

YG-1 P26253 SERIES 2.5 FLANGED Straight Shank / Flute INTERMEDIATED Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P26253
Delivery date: 3-5 days
$326.64

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Spade Drilling, Single Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Overall Len 9.3438 237.33MM
Cut Dia Min 1.1875 30.16MM - 1-3/16
Flutes/Inserts 2
Flute Length 5.3750 136.53MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.1875 30.16MM - 1-3/16
Machine Side Connection Size 1.2500 31.75MM
Tool Material Steel
Cut Dia Max 1.3750 34.93MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
