  • YG-1 P26203 SERIES 2 FLANGED Straight Shank / Flute INTERMEDIATED Spade Drill Holder

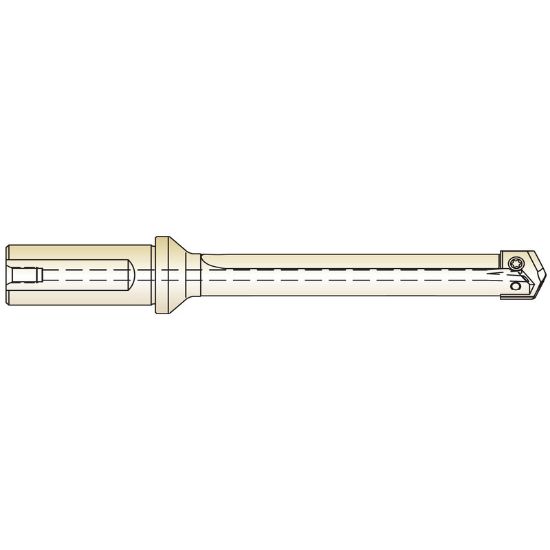

Picture of YG-1 P26203 SERIES 2 FLANGED Straight Shank / Flute INTERMEDIATED Spade Drill Holder

YG-1 P26203 SERIES 2 FLANGED Straight Shank / Flute INTERMEDIATED Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P26203
Delivery date: 3-5 days
$326.64

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Spade Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.9688 24.61MM - 31/32
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Overall Len 9.3438 237.33MM
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Min 0.9688 24.61MM - 31/32
Flute Length 5.3750 136.53MM
Cut Dia Max 1.3750 34.93MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
