  • YG-1 P26152 SERIES 1.5 FLANGED Straight Shank / Flute INTERMEDIATED Spade Drill Holder

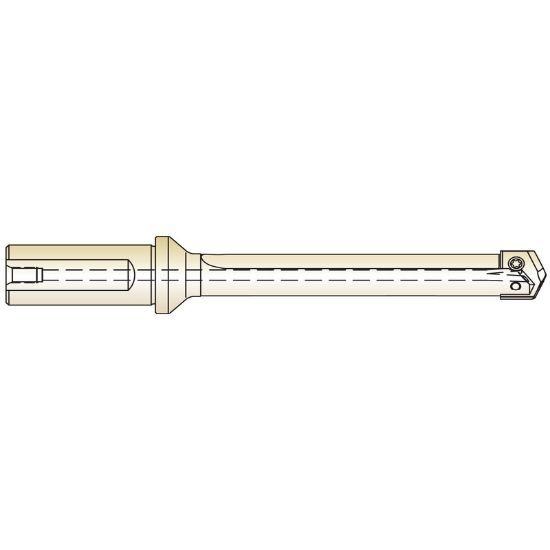

Picture of YG-1 P26152 SERIES 1.5 FLANGED Straight Shank / Flute INTERMEDIATED Spade Drill Holder

YG-1 P26152 SERIES 1.5 FLANGED Straight Shank / Flute INTERMEDIATED Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P26152
Delivery date: 3-5 days
$258.20

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling, Spade Drilling
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.8594 21.83MM - 55/64
Cut Dia Max 0.9375 23.81MM
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Overall Len 8.3750 212.73MM
Cut Dia Min 0.8594 21.83MM - 55/64
Shank/Pilot Dia 1.0000 25.40MM
Flute Length 4.6250 117.48MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Aerospace Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
