  • YG-1 P25Z01 SERIES Z FLANGED Straight Shank / Flute Short Length Holder

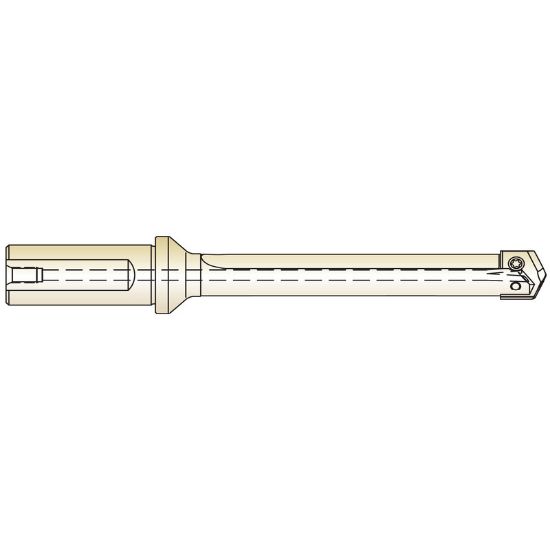

Picture of YG-1 P25Z01 SERIES Z FLANGED Straight Shank / Flute Short Length Holder

YG-1 P25Z01 SERIES Z FLANGED Straight Shank / Flute Short Length Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P25Z01
Delivery date: 3-5 days
$211.55

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Spade Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 0.4375 11.11MM - 7/16
Cutter Dia 0.4375 11.11MM - 7/16
Cut Dia Max 0.5000 12.70MM - 1/2
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.4375 112.71MM
Flute Length 1.2500 31.75MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
