  • YG-1 P25404 SERIES 4 FLANGED Straight Shank / Flute Short Length Holder

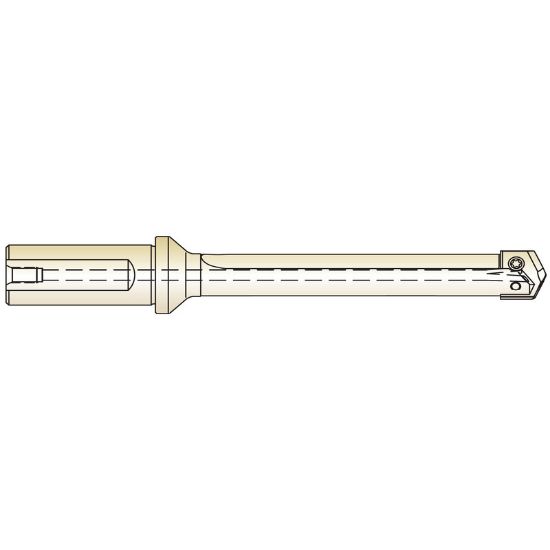

Picture of YG-1 P25404 SERIES 4 FLANGED Straight Shank / Flute Short Length Holder

YG-1 P25404 SERIES 4 FLANGED Straight Shank / Flute Short Length Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P25404
Delivery date: 3-5 days
$342.77

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Spade Drilling, Single Insert Drilling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 1.9062 48.42MM - 1-29/32
Overall Len 9.7500 247.65MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Cut Dia Max 2.5625 65.09MM - 2-9/16
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 1.9063 48.42MM - 1-29/32
Flute Length 5.1250 130.18MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
