  • YG-1 P25303 SERIES 3 FLANGED Straight Shank / Flute Short Length Holder

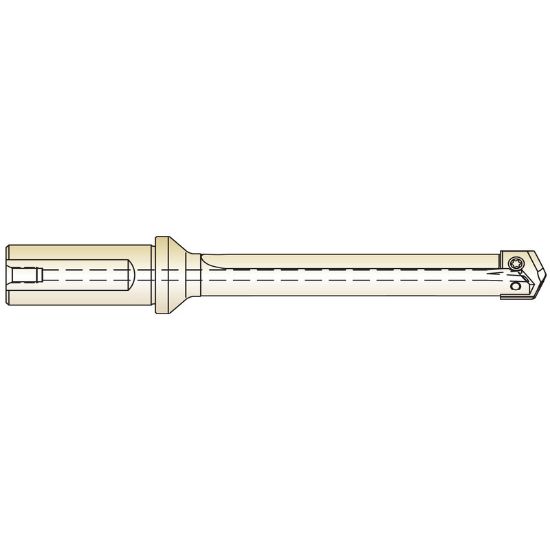

Picture of YG-1 P25303 SERIES 3 FLANGED Straight Shank / Flute Short Length Holder

YG-1 P25303 SERIES 3 FLANGED Straight Shank / Flute Short Length Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P25303
Delivery date: 3-5 days
$302.48

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Drilling, Spade Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Overall Len 9.5000 241.30MM
Cut Dia Min 1.4062 35.72MM - 1-13/32
Flute Length 4.7500 120.65MM
Cutter Dia 1.4062 35.72MM - 1-13/32
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 2
Cut Dia Max 1.8750 47.63MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
