  • YG-1 P25001 SERIES 0 FLANGED Straight Shank / Flute Short Length Holder

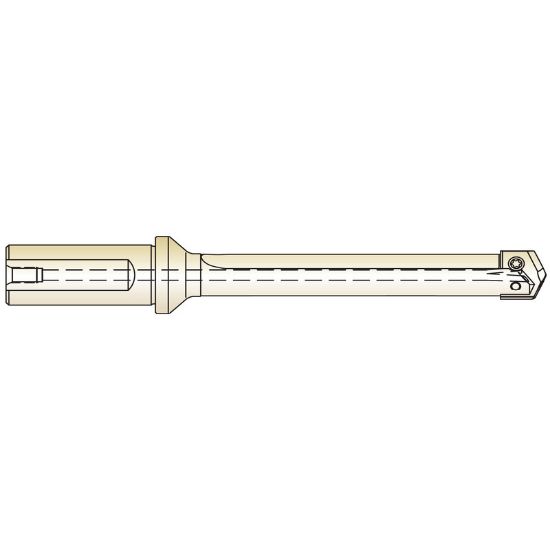

Picture of YG-1 P25001 SERIES 0 FLANGED Straight Shank / Flute Short Length Holder

YG-1 P25001 SERIES 0 FLANGED Straight Shank / Flute Short Length Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P25001
Delivery date: 3-5 days
$211.55

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Spade Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Max 0.6875 17.46MM
Cut Dia Min 0.5156 13.10MM - 33/64
Machine Side Connection Type Boring Bar,Weldon
Overall Len 4.5313 115.10MM
Flutes/Inserts 2
Cutter Dia 0.5156 13.10MM - 33/64
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flute Length 1.3750 34.93MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
