  • YG-1 P17506 SERIES 5 Straight Shank & Straight Flute Long Length Spade Drill Holder

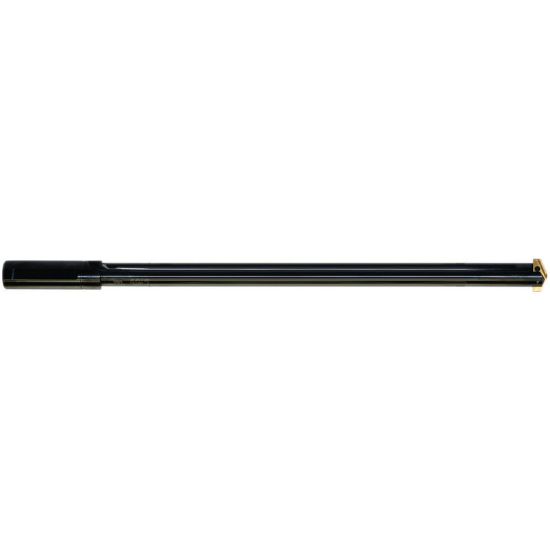

Picture of YG-1 P17506 SERIES 5 Straight Shank & Straight Flute Long Length Spade Drill Holder

YG-1 P17506 SERIES 5 Straight Shank & Straight Flute Long Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P17506
Delivery date: 3-5 days
$769.96

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling, Spade Drilling
Shipping State Illinois
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 2.0000 50.80MM - 2
Cut Dia Max 3.5000 88.90MM - 3-1/2
Machine Side Connection Type Boring Bar,Weldon
Overall Len 31.7500 806.45MM
Flute Length 26.0000 660.40MM
Tool Material Steel
Cutter Dia 2.5000 63.50MM - 2-1/2
Flutes/Inserts 2
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Multi Spindle Yes
