  • YG-1 P17404 SERIES 4 Straight Shank & Straight Flute Long Length Spade Drill Holder

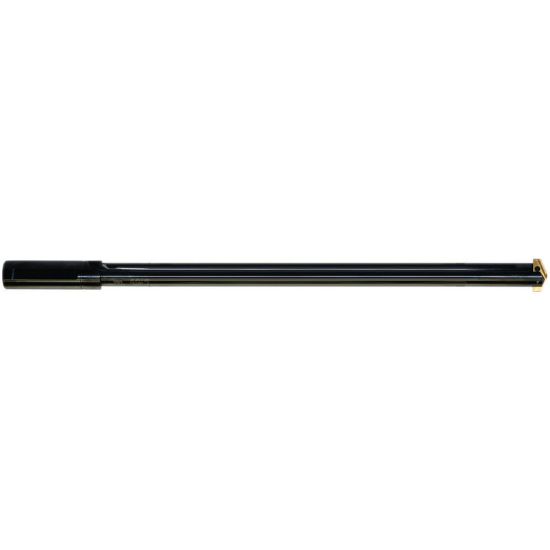

Picture of YG-1 P17404 SERIES 4 Straight Shank & Straight Flute Long Length Spade Drill Holder

YG-1 P17404 SERIES 4 Straight Shank & Straight Flute Long Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P17404
Delivery date: 3-5 days
$531.97

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Drilling, Spade Drilling, Single Insert Drilling
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 2
Cut Dia Min 1.9062 48.42MM - 1-29/32
Cut Dia Max 2.5625 65.09MM - 2-9/16
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutter Dia 1.9063 48.42MM - 1-29/32
Machine Side Connection Type Boring Bar,Weldon
Overall Len 30.0000 762.00MM
Flute Length 24.6250 625.48MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Multi Spindle Yes
Energy Yes
