  • YG-1 P16Z01 SERIES Z Straight Shank & Straight Flute Extended Length Spade Drill Holder

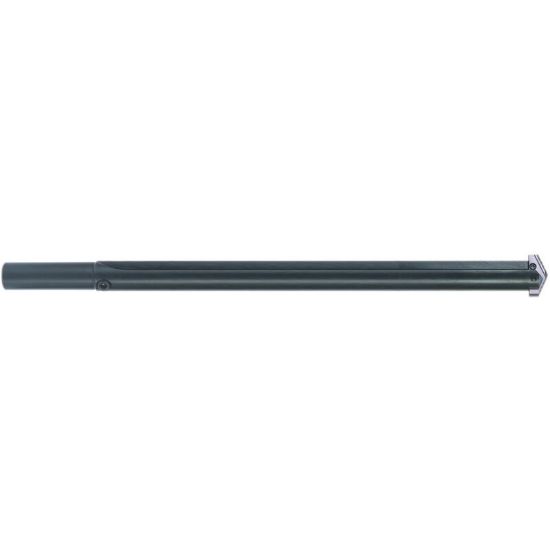

Picture of YG-1 P16Z01 SERIES Z Straight Shank & Straight Flute Extended Length Spade Drill Holder

YG-1 P16Z01 SERIES Z Straight Shank & Straight Flute Extended Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P16Z01
Delivery date: 3-5 days
$215.75

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling, Spade Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.4375 11.11MM - 7/16
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flute Length 4.3750 111.13MM
Cut Dia Max 0.5000 12.70MM - 1/2
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 0.4375 11.11MM - 7/16
Overall Len 7.5313 191.30MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
