  • YG-1 P16Y01 SERIES Y Straight Shank & Straight Flute Extended Length Spade Drill Holder

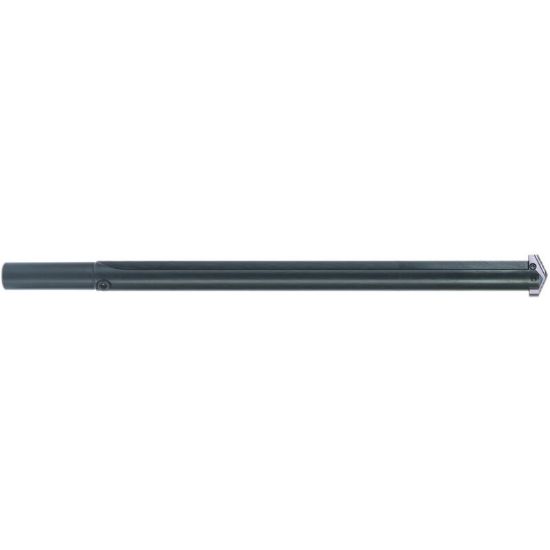

Picture of YG-1 P16Y01 SERIES Y Straight Shank & Straight Flute Extended Length Spade Drill Holder

YG-1 P16Y01 SERIES Y Straight Shank & Straight Flute Extended Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P16Y01
Delivery date: 3-5 days
$215.75

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Spade Drilling, Single Insert Drilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flute Length 4.3750 111.13MM
Overall Len 7.5313 191.30MM
Cutter Dia 0.4375 11.11MM - 7/16
Cut Dia Min 0.4375 11.11MM - 7/16
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 0.5000 12.70MM - 1/2
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
Multi Spindle Yes
