  • YG-1 P16303 SERIES 3 Straight Shank & Straight Flute Extended Length Spade Drill Holder

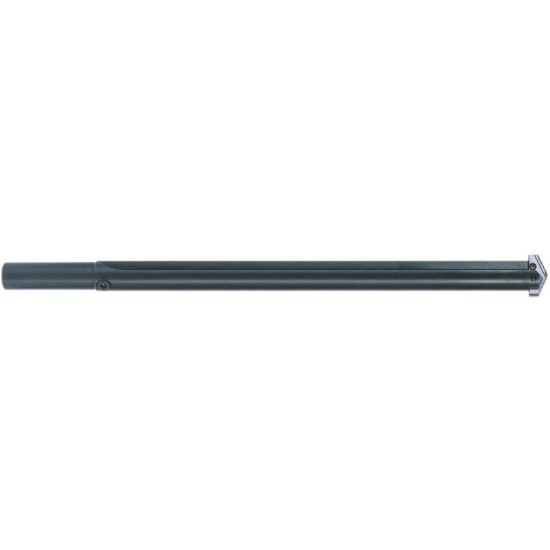

Picture of YG-1 P16303 SERIES 3 Straight Shank & Straight Flute Extended Length Spade Drill Holder

YG-1 P16303 SERIES 3 Straight Shank & Straight Flute Extended Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P16303
Delivery date: 3-5 days
$352.79

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Spade Drilling, Drilling
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Min 1.4062 35.72MM - 1-13/32
Cutter Dia 1.4062 35.72MM - 1-13/32
Overall Len 19.0000 482.60MM
Flute Length 13.7500 349.25MM
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.8750 47.63MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Aerospace Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
