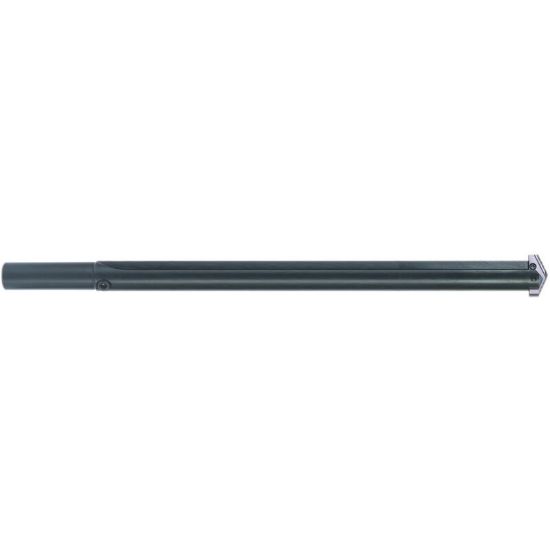

Picture of YG-1 P16253 SERIES 2.5 Straight Shank & Straight Flute Extended Length Spade Drill Holder

YG-1 P16253 SERIES 2.5 Straight Shank & Straight Flute Extended Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P16253
Delivery date: 3-5 days
$294.96

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Spade Drilling, Drilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Flute Length 11.3750 288.93MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.3750 34.93MM
Cutter Dia 1.1875 30.16MM - 1-3/16
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.1875 30.16MM - 1-3/16
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Overall Len 16.0000 406.40MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Multi Spindle Yes
