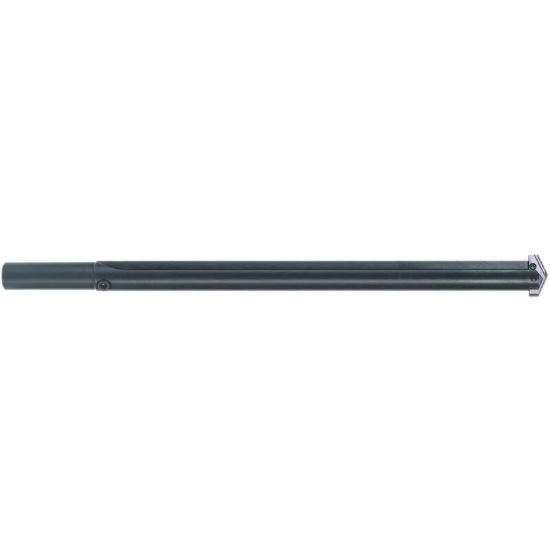

Picture of YG-1 P16102 SERIES 1 Straight Shank & Straight Flute Extended Length Spade Drill Holder

YG-1 P16102 SERIES 1 Straight Shank & Straight Flute Extended Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P16102
Delivery date: 3-5 days
$250.25

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Spade Drilling, Single Insert Drilling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Overall Len 14.8750 377.83MM
Cutter Dia 0.7031 17.86MM - 45/64
Flutes/Inserts 2
Flute Length 10.6250 269.88MM
Cut Dia Min 0.7031 17.86MM - 45/64
Cut Dia Max 0.9375 23.81MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
