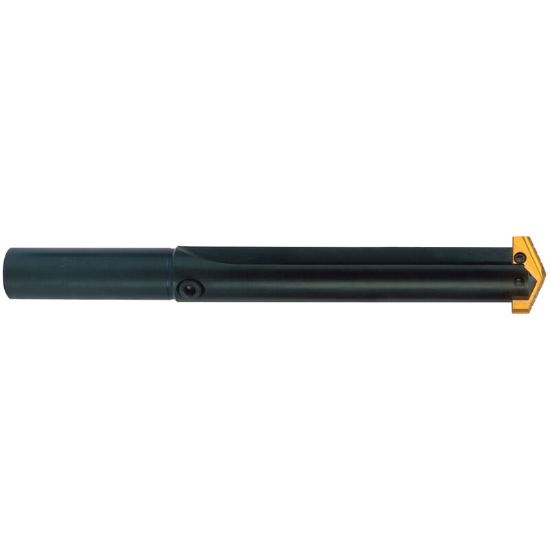

Picture of YG-1 P15Z01 SERIES Z Straight Shank & Straight Flute Standard Length Spade Drill Holder

YG-1 P15Z01 SERIES Z Straight Shank & Straight Flute Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P15Z01
Delivery date: 3-5 days
$177.16

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling, Spade Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 2
Overall Len 5.5313 140.50MM
Cut Dia Min 0.4375 11.11MM - 7/16
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flute Length 2.3750 60.33MM
Cutter Dia 0.4375 11.11MM - 7/16
Cut Dia Max 0.5000 12.70MM - 1/2
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
Multi Spindle Yes
