  • YG-1 P15Y01 SERIES Y Straight Shank & Straight Flute Standard Length Spade Drill Holder

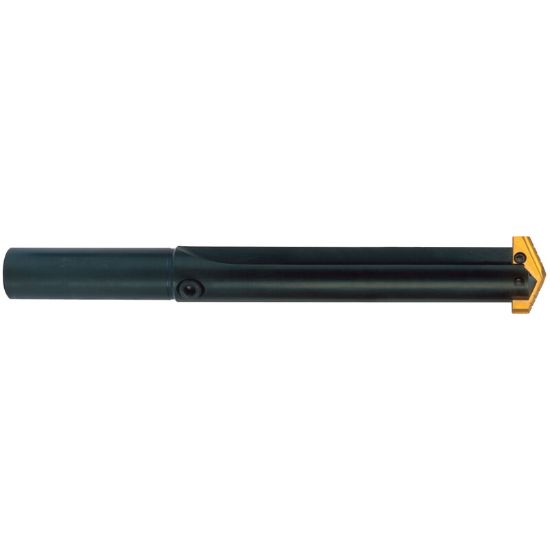

Picture of YG-1 P15Y01 SERIES Y Straight Shank & Straight Flute Standard Length Spade Drill Holder

YG-1 P15Y01 SERIES Y Straight Shank & Straight Flute Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P15Y01
Delivery date: 3-5 days
$177.16

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Spade Drilling, Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 0.3750 9.53MM - 3/8
Overall Len 5.5313 140.50MM
Cutter Dia 0.3750 9.53MM - 3/8
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flute Length 2.3750 60.33MM
Cut Dia Max 0.4219 10.72MM - 27/64
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
