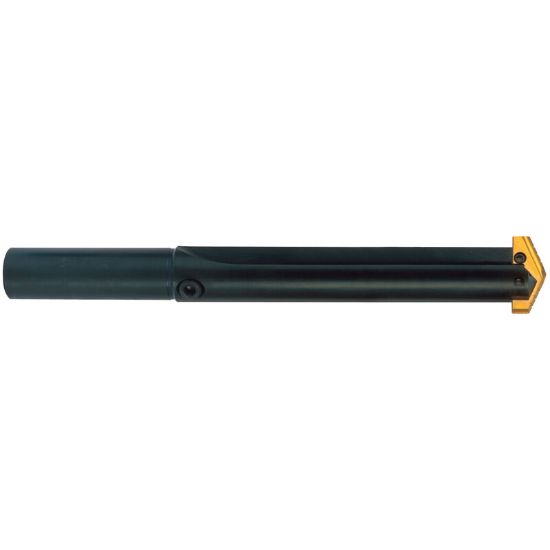

Picture of YG-1 P15708 SERIES 7 Straight Shank & Straight Flute Standard Length Spade Drill Holder

YG-1 P15708 SERIES 7 Straight Shank & Straight Flute Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P15708
Delivery date: 3-5 days
$654.47

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Spade Drilling, Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 3.0000 76.20MM - 3
Flutes/Inserts 2
Flute Length 10.7500 273.05MM
Cutter Dia 3.5313 89.70MM - 3-17/32
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Min 3.5313 89.70MM - 3-17/32
Tool Material Steel
Overall Len 17.8750 454.03MM
Cut Dia Max 4.5000 114.30MM - 4-1/2
Machine Side Connection Size 3.0000 76.20MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
