  • YG-1 P15405 SERIES 4 Straight Shank & Straight Flute Standard Length Spade Drill Holder

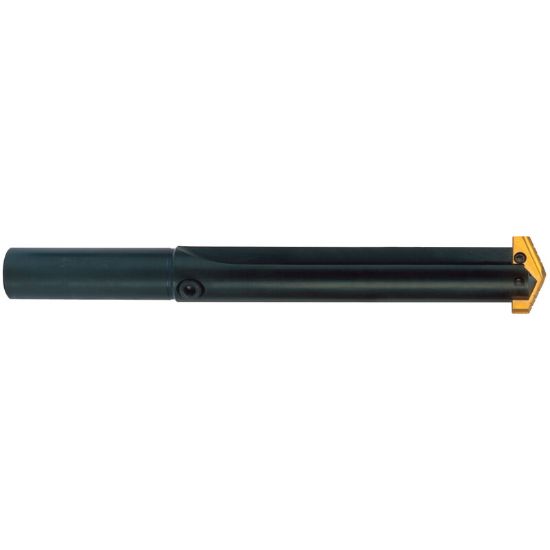

Picture of YG-1 P15405 SERIES 4 Straight Shank & Straight Flute Standard Length Spade Drill Holder

YG-1 P15405 SERIES 4 Straight Shank & Straight Flute Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P15405
Delivery date: 3-5 days
$316.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling, Spade Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 1.9062 48.42MM - 1-29/32
Overall Len 14.5000 368.30MM
Flute Length 9.1250 231.78MM
Cut Dia Max 2.5625 65.09MM - 2-9/16
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 1.9063 48.42MM - 1-29/32
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
