  • YG-1 P15404 SERIES 4 Straight Shank & Straight Flute Standard Length Spade Drill Holder

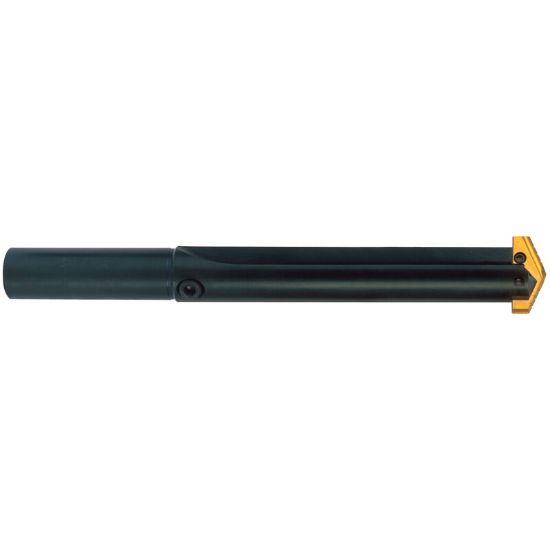

Picture of YG-1 P15404 SERIES 4 Straight Shank & Straight Flute Standard Length Spade Drill Holder

YG-1 P15404 SERIES 4 Straight Shank & Straight Flute Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P15404
Delivery date: 3-5 days
$293.53

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Spade Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Min 1.9062 48.42MM - 1-29/32
Machine Side Connection Size 1.5000 38.10MM
Tool Material Steel
Overall Len 14.5000 368.30MM
Flute Length 9.1250 231.78MM
Flutes/Inserts 2
Cut Dia Max 2.5625 65.09MM - 2-9/16
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutter Dia 1.9063 48.42MM - 1-29/32
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Automotive Yes
