  • YG-1 P15304 SERIES 3 Straight Shank & Straight Flute Standard Length Spade Drill Holder

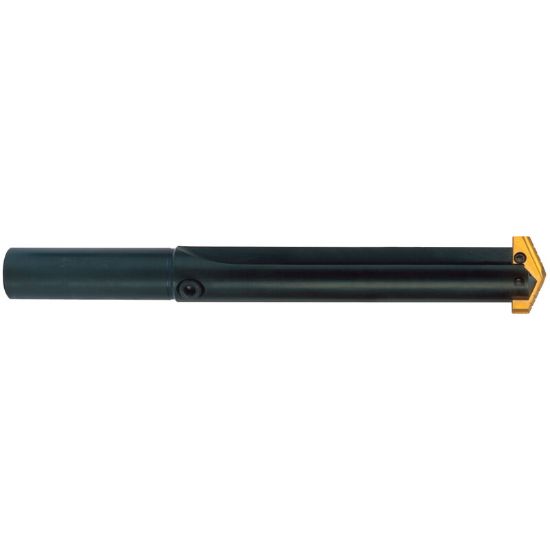

Picture of YG-1 P15304 SERIES 3 Straight Shank & Straight Flute Standard Length Spade Drill Holder

YG-1 P15304 SERIES 3 Straight Shank & Straight Flute Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P15304
Delivery date: 3-5 days
$234.04

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Spade Drilling, Single Insert Drilling
Shipping State Illinois
Made In USA No
Dimensional Specifications
Cutter Dia 1.4062 35.72MM - 1-13/32
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Overall Len 13.5000 342.90MM
Cut Dia Max 1.8750 47.63MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flute Length 8.2500 209.55MM
Cut Dia Min 1.4062 35.72MM - 1-13/32
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Multi Spindle Yes
