  • YG-1 P15303 SERIES 3 Straight Shank & Straight Flute Standard Length Spade Drill Holder

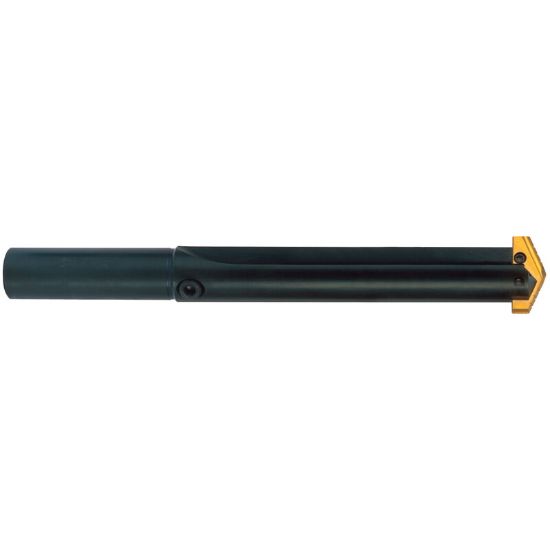

Picture of YG-1 P15303 SERIES 3 Straight Shank & Straight Flute Standard Length Spade Drill Holder

YG-1 P15303 SERIES 3 Straight Shank & Straight Flute Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P15303
Delivery date: 3-5 days
$234.04

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Single Insert Drilling, Spade Drilling, Drilling
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 13.5000 342.90MM
Cut Dia Min 1.4062 35.72MM - 1-13/32
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flute Length 8.2500 209.55MM
Cutter Dia 1.4062 35.72MM - 1-13/32
Cut Dia Max 1.8750 47.63MM
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
