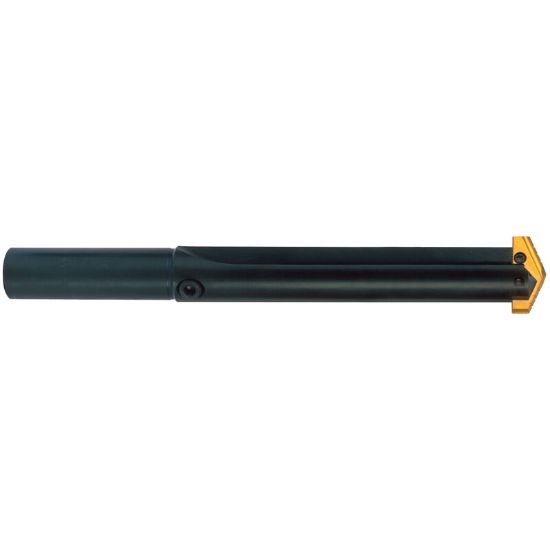

Picture of YG-1 P15253 SERIES 2.5 Straight Shank & Straight Flute Standard Length Spade Drill Holder

YG-1 P15253 SERIES 2.5 Straight Shank & Straight Flute Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P15253
Delivery date: 3-5 days
$231.36

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Spade Drilling, Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 12.0000 304.80MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Flute Length 7.3750 187.33MM
Cut Dia Max 1.3750 34.93MM
Cutter Dia 1.1875 30.16MM - 1-3/16
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.1875 30.16MM - 1-3/16
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
