  • YG-1 P15252 SERIES 2.5 Straight Shank & Straight Flute Standard Length Spade Drill Holder

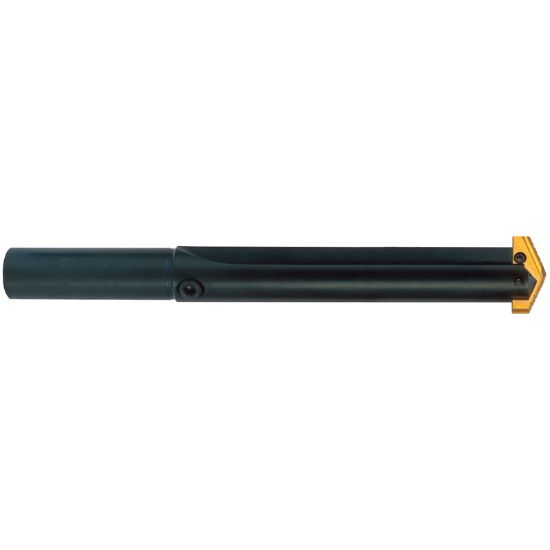

Picture of YG-1 P15252 SERIES 2.5 Straight Shank & Straight Flute Standard Length Spade Drill Holder

YG-1 P15252 SERIES 2.5 Straight Shank & Straight Flute Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P15252
Delivery date: 3-5 days
$231.36

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Spade Drilling, Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Overall Len 12.0000 304.80MM
Cutter Dia 1.1875 30.16MM - 1-3/16
Cut Dia Min 1.1875 30.16MM - 1-3/16
Cut Dia Max 1.3750 34.93MM
Tool Material Steel
Flute Length 7.3750 187.33MM
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
